sawdust die-turned pellet mill

The small pellet mill, ZLSP Sawdust Flat Die Pellet Mill as a latest model is specialized in processing various kinds of biomass raw materials to biomass pellets. The driving gear is made of superior alloy steel. The gear surface is processed via carburizing and quenching also has been fine-ground.

Get a quote

What can sawdust pellet machine do for you?

Small wood pellet machine machining various agricultural wastes. This kind of small pellet machines can process wood chips, straw, rice husks, bark, wood and other raw materials into high-density pellets. Pellets is the ideal fuel to replace traditional fuels. They save energy, reduce emissions and improve economic efficiency. Biomass pellets is efficient and clean renewable energy, and the small pellet making machine can help you to turn biomass to biofuel.

Small pellet machine we offer

electric motor small pellet mill
Electric Motor-driven Small Pellet Making Machine (Model B)
Type Power (kw) Output (kg/h) Weight (kg) Package size (mm)
ZLSP 150B 5.5 50-100 95/110 800x450x700
ZLSP 200B 7.5 80-120 200/230 1050x480x930
ZLSP 230B 11 120-200 290/320 1180x540x1000
ZLSP 260B 15 160-250 320/360 1240x540x950
ZLSP 300B 22 250-400 350/380 1300x560x1100
electric motor with enclosure small pellet mill
Electric Motor-with-Enclosure-driven Type (Model C)
Type Power (kw) Output (kg/h) Weight (kg) Package size (mm)
ZLSP 150C 5.5 60-110 105/125 1000x480x780
ZLSP 200C 7.5 80-120 210/230 1050x550x830
ZLSP 230C 11 120-200 290/320 1200x560x950
ZLSP 260C 15 160-250 340/370 1240x580x1000
ZLSP 300C 22 250-400 425/465 1300x620x1100

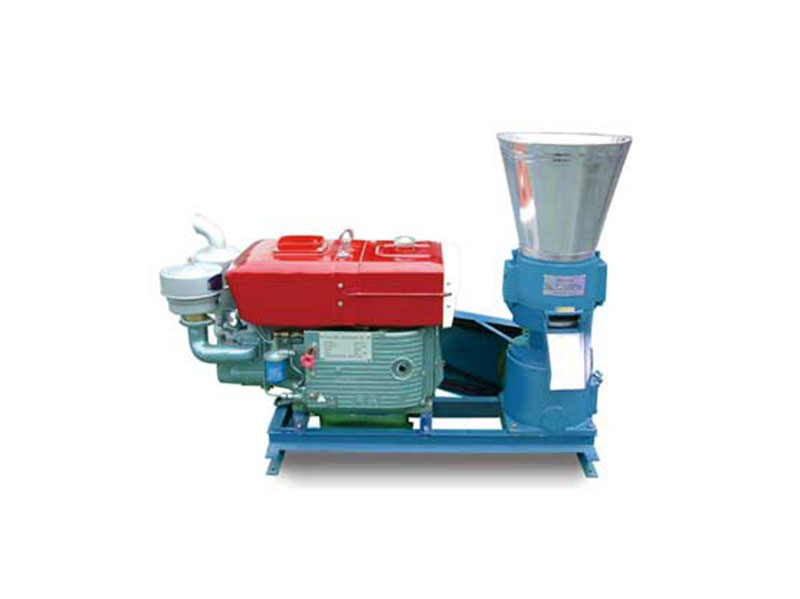

diesel small pellet mill
Diesel Engine-driven Type (Model A)
Type Power (kw) Output (kg/h) Weight (kg) Package size (mm)
ZLSP 150A 8 50-100 180/220 1000x500x750
ZLSP 200A 15 80-120 210/240 1460x750x900
ZLSP 230A 22 120-200 280/310 1560x850x1000
ZLSP 260A 33 160-250 330/360 1200x500x1070
ZLSP 300A 41 250-400 410/450 1220x600x1000
gasoline small pellet mill
Gasoline Engine-driven Type (Model Q)
Type Power (kw) Output (kg/h) Weight (kg) Package size (mm)
ZLSP 150Q 10 50-100 180/220 1000x500x750
pto small pellet mil
PTO Type (Model P)
Type Power (kw) Output (kg/h) Weight (kg) Package size (mm)
ZLSP 150P ≥8 50-100 90/110 900x540x1020
ZLSP 200P ≥15 80-120 130/150 1000x540x1020
ZLSP 230P ≥22 120-200 175/200 1000x540x1020
ZLSP 260P ≥33 160-250 235/255 1050x540x900
ZLSP 300P ≥41 250-400 305/325 1100x540x1000

How do small pellet mill work?

Unpack and Installation
Trial Running
Part Replacement

The motor drives the main shaft of the small pellet making machine through the gearbox, the main shaft drives the grinding disc of the small pellet machines, the press roller revolves around the roller, and the main shaft rotates while driving the roller rotation. The raw material is fed into the feeding chamber of the die-turned small pelletizer machine, and the materials are left on the flat die of the small pelletizing machine. The main shaft drives the mill, roller continuous rolls the material layer, squeezing materials into the die hole. The materials in the die hole experience the process of forming and shape maintenance, after a certain time, they are squeezed out in cylindrical form. The blade of small wood pellet machine cuts the cylindrical materials into pellets, then the tray sends the pellets out.

die turned pellet press machine

Small pellet making machine advantages

Sawdust Die-Turned Pellet Mill features simple structure, convenient using and maintenance, steady performance and low operation cost. Our company provides high quality pre-sale and after-sales service to keep clients free from problems about pellets, pellet making and pellet machines.

GEMCO is one of the leading pellet machine manufacturers in China. Our products are world-class quality and all of the pellet mill spare parts are international standard. With CE and ISO:9001 certification, we provide you with enjoyable shopping experience. Any needs please contact us. Leave messages for more details and quotation.
